LASORB L44-47-122-208-X

정가 $7.50 세일

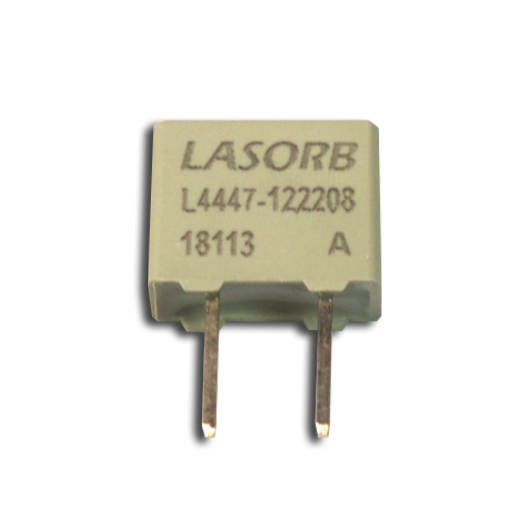

<스팬>L44-47-122-208-X 시리즈 LASORB 장치는 적외선 레이저 다이오드와 최대 2.2V의 작동 전압을 가진 기타 광전자 장치를 보호하기 위해 특별히 설계되고 테스트된 당사의 ESD 흡수기의 2핀 관통형 버전이다. 역방향 바이어스 상태뿐 아니라 급변하는 전진 바이어스 상태로부터 보호한다.(이 전압 범위 내에서 작동하는 레이저 다이오드는 저전력과 매우 민감한 레이저 다이오드인 경우가 많다. 단, 고출력 C-mount IR 다이오드도 이 범위에 있다.) .

제품 개요

<스팬> 레이저 다이오드는 변화하는 전압과 전류에 빠르게 반응하는 매우 빠른 장치다. 이는 신호 전달과 같은 적용의 효익이지만, 잠재적 부채이기도 하다. 레이저 다이오드는 정전기 방전(ESD) 이벤트와 전력 서지에 취약하다. 블루레이와 저전력 적색 레이저 다이오드는 정상 작동 파라미터를 초과하는 인가 전압의 증가는 광학 및 전기 과압을 유발하기 때문에 특히 전압 스파이크에 취약하다.
라는 전기적 요소를 개발했다.라소르브"의 합성어다.LASER 및 "ESD ABSORBER." LASORB 구성요소는 크기가 작고 레이저 다이오드의 핀에 직접 연결할 수 있기 때문에 엔지니어가 구현하기 쉽다.<

<스팬>LASORB의 1차 보호수단은 레이저 다이오드의 핀을 통과하는 전압을 감시하는 슬루 레이트 검출기(slew-rate detector)이다. 전압의 빠른 변화 조건이 감지되면, 이것은 LASORB를 트리거하여 레이저 다이오드에서 전압(따라서 전류)을 공격적으로 전도한다. 전도는 매우 빠르게 시작된다. 어떤 경우에는 1나노초도 안 된다. 전도는 몇 초에서 수십 초까지 지속될 수 있다.<

자세한 정보는
